Fuse Locations

If any electrical devices are not working, set the power mode to VEHICLE OFF (LOCK) and check to see if any applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.

Engine Compartment Fuse Box

Located near the brake fluid reservoir. Push the tabs to open the box.

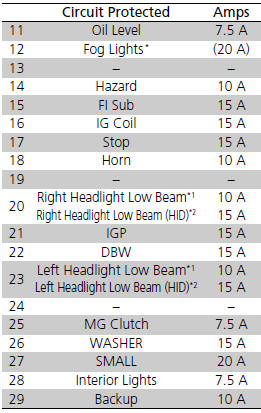

Circuit protected and fuse rating

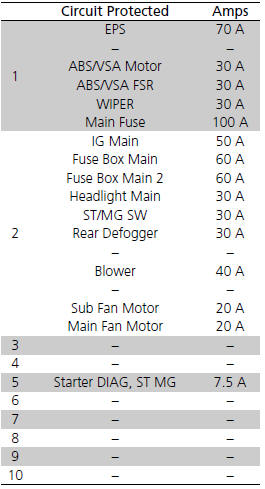

Circuit protected and fuse rating



*1:Models with halogen bulb low beam headlights

*1:Models with halogen bulb low beam headlights

*2:Models with discharge headlights

Interior Fuse Box

Located under the dashboard.

Fuse locations are shown on the label on

Fuse locations are shown on the label on the side panel. Locate the fuse in question by the fuse number and label number.

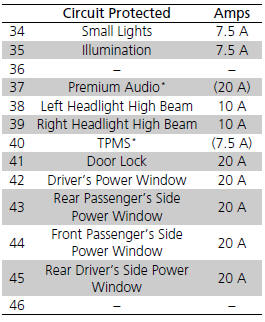

Circuit protected and fuse rating

Inspecting and Changing Fuses
