Multi-Information Display

The multi-information display shows the odometer, trip meter, outside temperature indicator, and other gauges. It also displays important messages such as warnings and other helpful information.

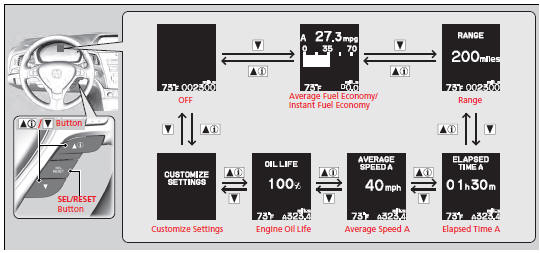

Switching the Display

Press the (information) button or the SEL/RESETbutton to change the display. (information) button or the SEL/RESET button to change the display.

Odometer

Odometer

Shows the total number of miles or kilometers that your vehicle has accumulated.

Trip Meter

Shows the total number of miles or kilometers driven since the last reset. Meters A and B can be used to measure two separate trips.

Resetting a trip meter

To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip meter is reset to 0.0.

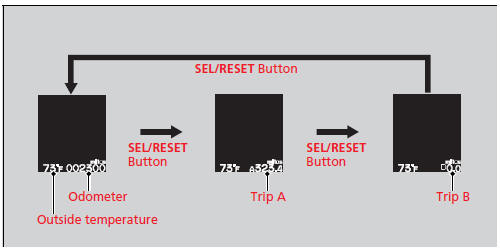

Trip Meter

Switch between trip meter A and trip meter B by pressing the SEL/RESET button.

Outside Temperature

Adjusting the outside temperature display

Outside Temperature

The temperature sensor is in the front bumper. Road heat and exhaust from another vehicle can affect the temperature reading when your vehicle speed is less than 19 mph (30 km/h). It may take several minutes for the display to be updated after the temperature reading has stabilized. Use the multi-information display's customized features to correct the temperature.

Adjusting the outside temperature display

Adjust the temperature reading up to ± 5°F or ± 3°C if the temperature reading seems incorrect.

Average Fuel Economy

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100 km (Canada). The display is updated at set intervals. When a trip meter is reset, the average fuel economy is also reset.

Average Fuel Economy

You can change the way the average fuel economy is reset.

Instant Fuel Economy

Shows the instant fuel economy as a bar graph in mpg or l/100 km.

Range

Shows the estimated distance you can travel on the remaining fuel. This distance is estimated from the fuel economy of your trips in the past.

Elapsed Time

Shows the time elapsed since the last time Trip A or Trip B was reset.

Average Speed

Shows the average speed in mph or km/h since the last time Trip A or Trip B was reset.

Engine Oil Life

Shows the remaining oil life and Maintenance MinderTM.



Customized Features

Use the multi-information display to customize certain features.

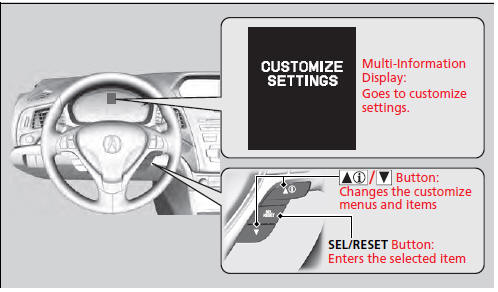

How to customize

Press the button to select CUSTOMIZE SETTINGS / while the power mode button to select CUSTOMIZE SETTINGS while the power mode is in ON.

Customized Features

Customized Features

To customize other features, press the / button. button.

When you customize settings:

Automatic transmission models

Shift to Manual transmission models

Manual transmission models

Set the parking brake

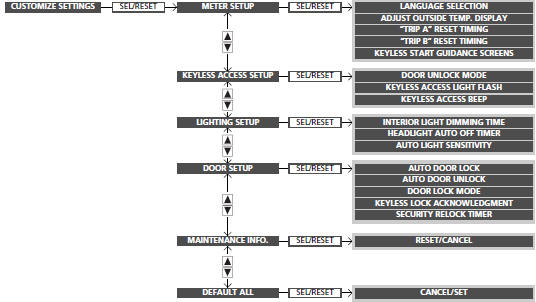

Customization flow

Press the  button to select CUSTOMIZE / SETTINGS and press the SEL/ button to select CUSTOMIZE SETTINGS and press the SEL/ RESET button.

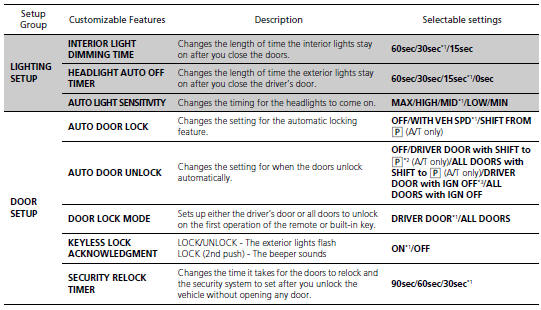

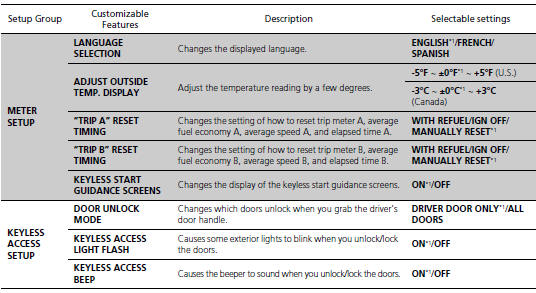

List of customizable options

List of customizable options

Example of customization settings

Example of customization settings

The steps for changing the “TRIP A” RESET TIMING setting to ON are shown below. The default setting for “TRIP A” RESET TIMING is MANUALLY RESET.

1. Press and release the

1. Press and release the button  button until CUSTOMIZE SETTINGS appears on the display.

2. Press the SEL/RESET button to go into the

2. Press the SEL/RESET button to go into the METER SETUP group.

3. Press the SEL/RESET button again.

 - LANGUAGE SELECTION appears first on the display.

4. Press the   button until

4. Press the “TRIP A”  button until “TRIP A” RESET TIMING appears on the display, then press the SEL/RESET button.

 - The display switches to the SETUP screen, where you can select WITH REFUEL, IGN OFF, MANUALLY RESET, or EXIT.

5. Press the button and select

5. Press the button and select MANUALLY RESET, then press the SEL/ RESET button.

 - The MANUALLY RESET setup screen appears, then the display returns to the customize item screen.

6. Press the  button until EXIT

6. Press the appears on the display, then press the button until EXIT appears on the display, then press the SEL/RESET button.

7. Repeat Step 6 until you return to the normal screen.
